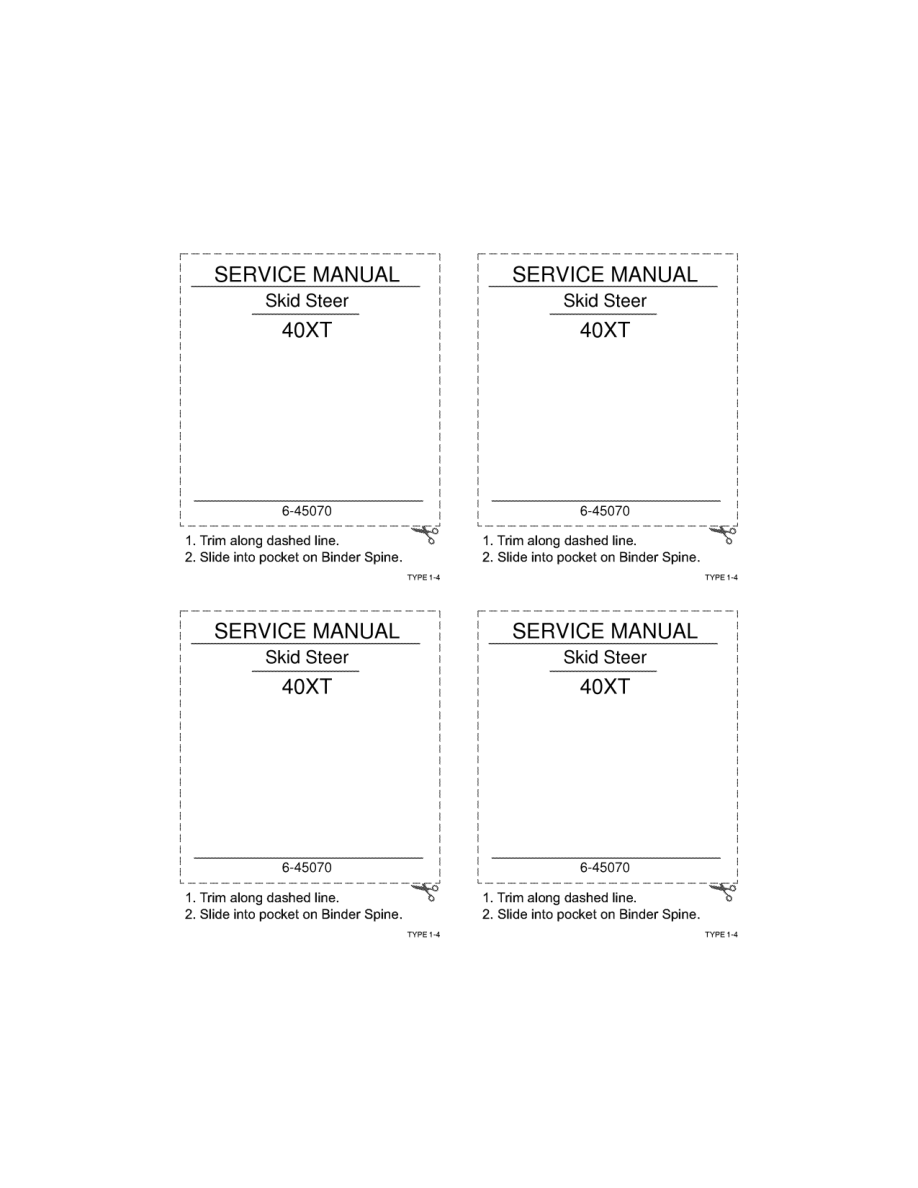

Case 40XT SkidSteer Repair Manual
| 🚜 Equipment | |
|---|---|
| Brand | CASE |
| Type | Skidsteer |
| Model | 40XT |
| 📄 Documents | |
| Type | Repair Manual |
| Publication | 6-45070 |
| Language | English |
| Format | |
| No of Pages | 627 |
The Case 40XT Skid Steer Loader is a compact yet powerful machine designed for versatility in construction, landscaping, and agricultural work. Equipped with a Case Family III 4-cylinder diesel engine delivering 53 gross horsepower, the 40XT provides the strength and reliability needed for demanding jobs while maintaining excellent fuel efficiency. Its rated operating capacity of 1,350 lbs and tipping load of 2,700 lbs make it ideal for material handling, grading, and attachment operation in tight job sites.
The 40XT integrates a hydrostatic drive system, responsive hydraulics (15.7 GPM at 3,000 psi), and durable chaincase final drives to ensure smooth power transfer and long service life. With a travel speed of 7.2 mph and excellent maneuverability, operators can efficiently tackle a wide variety of applications. The cab design emphasizes visibility and safety, while the centralized service points make maintenance straightforward and cost-effective.
The repair manual covers every system in detail, from the engine, fuel, and electrical systems to the power train, brakes, and hydraulics. It also includes mounted equipment service, plus complete hydraulic and electrical schematic foldouts for advanced troubleshooting. Step-by-step repair procedures, torque values, lubrication charts, and diagnostic guidelines ensure both technicians and owners can maintain factory-level performance throughout the machine’s service life.
Key Highlights
- Case 4-cylinder diesel engine delivering 50 net hp for dependable performance
- Rated operating capacity of 1,350 lbs with strong 2,700-lb tipping load
- Hydraulic system with 15.7 GPM flow and 3,000 psi for attachment versatility
- Comprehensive service coverage of engine, power train, brakes, and hydraulics
- Includes hydraulic and electrical schematic foldouts for troubleshooting
- Compact design with 7.2 mph travel speed for job site maneuverability
- Easy maintenance access and detailed repair instructions in the manual
Table of Content
📙 Table of Contents
Table Of Contents
- Table of Contents
General
- General
Engine
- Engine
Fuel System
- Fuel System
Electrical System
- Electrical System
Power Train
- Power Train
Brakes
- Brakes
Hydraulics
- Hydraulics
Mounted Equipment
- Mounted Equipment
Hydraulic And Electrical Schematic Foldout
- Hydraulic and Electrical Schematic Foldout
Specification
| Specification | Case 40XT Skid Steer Loader |
|---|---|
| Years Produced | 2001 – 2005 |
| Model Type | Skid-Steer Loader |
| Engine Manufacturer | Case Family III |
| Engine Type | 4-cylinder, diesel, liquid-cooled |
| Displacement | 179 cu in (2.9 L) |
| Gross Power | 53 hp (40 kW) |
| Net Power | 50 hp (37 kW) |
| Rated Operating Capacity | 1,350 lbs (612 kg) |
| Tipping Load | 2,700 lbs (1,225 kg) |
| Operating Weight | 5,370 lbs (2,437 kg) |
| Hydraulic Flow (Standard) | 15.7 gal/min (59 L/min) |
| System Relief Pressure | 3,000 psi (207 bar) |
| Travel Speed | 7.2 mph (11.6 km/h) |
| Fuel Tank Capacity | 15 gal (57 L) |
| Length with Standard Bucket | 123 in (3.12 m) |
| Width over Tires | 59.8 in (1.52 m) |
| Height to Top of Cab | 75.8 in (1.93 m) |
| Height to Bucket Hinge Pin | 112.5 in (2.86 m) |
| Wheelbase | 47.5 in (1.21 m) |
| Ground Clearance | 7.4 in (0.19 m) |
