Ford 727, 730, 735, 740 Loader Repair Manual
$22.00
| 🚜 Equipment | |
|---|---|
| Brand | FORD |
| Type | Backhoe Loader Tractor |
| Model | 727, 730, 735, 740 |
| 📄 Documents | |
| Type | Repair Manual |
| Publication | 40072740 |
| Language | English |
| Format | |
| No of Pages | 116 |
The Ford 727, 730, 735, and 740 Loaders are front-end loader attachments engineered to fit a range of Ford tractors, offering reliable lifting, material handling, and utility functions for farming, construction, and industrial applications. Designed with durable welded frames, hydraulic lift and bucket cylinders, and efficient control valve systems, these loaders deliver dependable breakout force and lift capacity while remaining easy to service. With variations like the 735 self-leveling loader and the 740 heavy-duty industrial version, the series provides flexibility to match different tractor sizes and operating requirements.
The Ford 727 loader offers lift capacities around 1,900 lbs, breakout force of over 3,000 lbs, and a dump clearance of 92 inches, making it ideal for general farm and utility use. The 730 and 735 loaders improve on these capabilities with stronger hydraulics, optional front-mounted pumps, and self-leveling functionality (735) for increased productivity. The 740 loader, built for industrial-class tasks, provides higher structural strength, reinforced cylinders, and larger bucket options, ensuring it can tackle heavy-duty material handling in construction and industrial environments.
The comprehensive repair manual provides detailed coverage of the entire loader system. Key sections include description and operation, hydraulic pumps, control valves, cylinders, oil flow analysis, troubleshooting guides, and mechanical adjustments with pressure checks. The manual also includes component overhaul procedures, lubrication and maintenance schedules, and detailed specifications. Step-by-step service instructions and diagnostic charts ensure owners and technicians can properly maintain and repair these loaders to factory standards.
Key Highlights
- Covers Ford 727, 730, 735 (self-leveling), and 740 loader models
- Lift capacity ~1,900 lbs (727) with breakout force over 3,000 lbs
- Dump clearance of 92 in and level clearance of 116 in on the 727 loader
- Stronger hydraulics and self-leveling on the 735 for improved performance
- Industrial-grade 740 loader designed for heavy-duty material handling
- Workshop manual sections: operation, pumps, valves, cylinders, oil flows, troubleshooting, adjustments, overhaul, and maintenance
- Includes pressure checks, lubrication charts, and factory specifications
- Step-by-step service instructions ensure long-term durability and safe operation
Table of Content
📙 Table of Contents
Table Of Contents
- Table of Contents

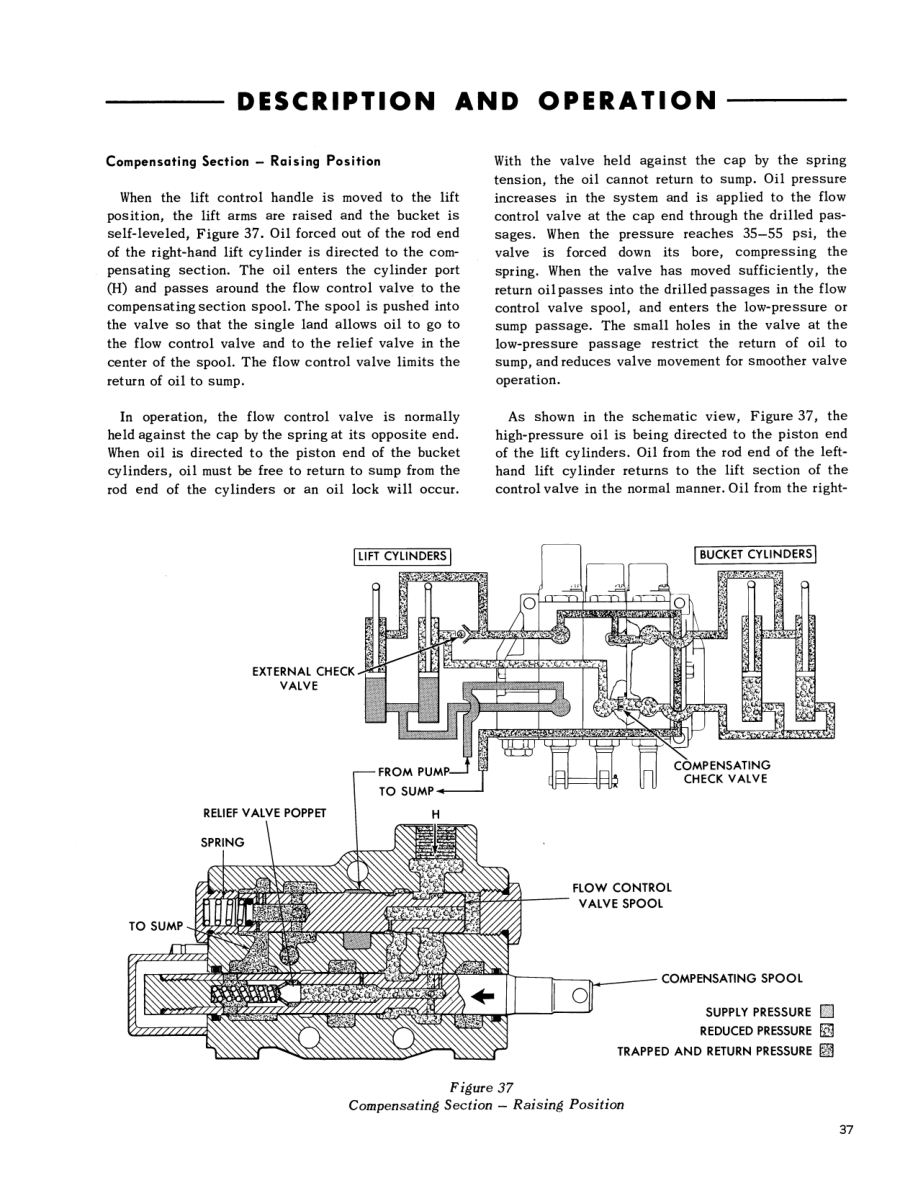

Description And Operation
- Description and Operation
Pumps
- Pumps
Control Valve
- Control Valve
Cylinders
- Cylinders
General Oil Flows
- General Oil Flows
Trouble Shooting
- Trouble Shooting
Mechanical Adjustments And Pressure Checks
- Mechanical Adjustments and Pressure Checks
Component Overhaul
- Component Overhaul

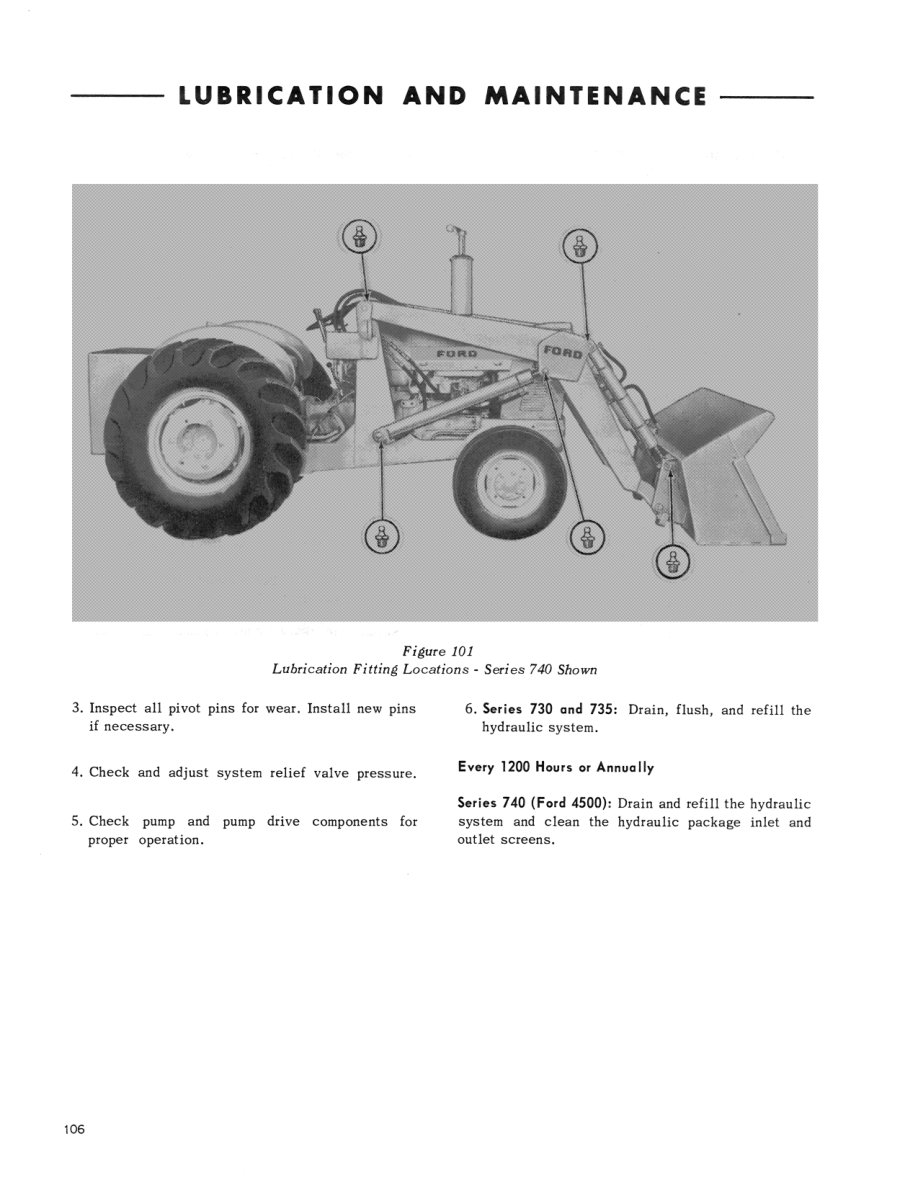

Lubrication And Maintenance
- Lubrication and Maintenance
Specifications
- Specifications
Specification
end{tbody>
| Specification | Series 727 | Series 730 / 735 | Series 740 |
|---|---|---|---|
| Loader Type / Model | Loader attachment for Ford 4000 / 5000 tractors | Industrial-type loaders (730, 735) with optional self-leveling | Loader variant for Ford 740 / Series 700 tractors |
| Lift Capacity (Full Height at Pin) | ~1,900 lbs (861 kg) :contentReference[oaicite:0]{index=0} | Not clearly listed in sources found | Not clearly listed in sources found |
| Breakout Force | ~3,300 lbs (1,496 kg) :contentReference[oaicite:1]{index=1} | Unknown | Unknown |
| Dump Angle | ~49° :contentReference[oaicite:2]{index=2} | Unknown | Unknown |
| Reach at Full Dump | ~26.5 in (67 cm) :contentReference[oaicite:3]{index=3} | Data not found | Data not found |
| Clearance (Dumped) | ≈ 92 in (233 cm) :contentReference[oaicite:4]{index=4} | Unknown | Unknown |
| Clearance (Level) | ≈ 116 in (294 cm) :contentReference[oaicite:5]{index=5} | Unknown | Unknown |
| Bucket Width | ~41 in (104 cm) :contentReference[oaicite:6]{index=6} | Unknown | Unknown |
| Loader Frame / Cylinder Type | Single-acting lift cylinders; double-acting bucket cylinder; uses tractor hydraulic lift circuits. Frame is welded box-type. :contentReference[oaicite:7]{index=7} | Optional front-mount pump; self-leveling (735); either unit-type or stacked compensating control valves depending on model. :contentReference[oaicite:8]{index=8} | Similar hydraulic control as 730/735; details vary. :contentReference[oaicite:9]{index=9} |
