Ford CL-30, CL-40 Compact Loader Repair Manual

The Ford CL-30 and CL-40 Compact Loaders are rugged skid-steer loaders designed for construction, landscaping, and agricultural applications. With rated operating capacities of approximately 1,500 lbs and engine outputs around 40 horsepower, these machines are built to handle material handling, grading, and light excavation tasks. The hydrostatic drive system provides smooth variable-speed control, while the compact design ensures maneuverability in confined worksites. Built with industrial-strength hydraulic systems, these loaders deliver efficient lifting and bucket performance under demanding conditions.

The CL-30 and CL-40 are equipped with loader arms reaching hinge pin heights near 95 inches, offering efficient loading capabilities. The hydraulic system, operating at pressures of about 1,550 psi, drives the loader functions with reliability and precision. With travel speeds of up to 6 mph, these loaders balance compact maneuverability with jobsite productivity. Operator controls are straightforward, with essential gauges and levers, including oil pressure monitoring on the CL-40. Their 12-volt electrical systems provide dependable starting and operation, while compact frames ensure versatility in tight work areas.

The comprehensive repair manual provides complete service coverage for the Ford CL-30 and CL-40 loaders. Major sections include description and troubleshooting, hydraulic system operation, pressure tests and adjustments, valve removal and inspection, cylinder servicing, loader and drive pump maintenance, lubrication, and specifications. Step-by-step service procedures, pressure testing charts, exploded component diagrams, lubrication schedules, and troubleshooting guides ensure accurate servicing and professional-level repairs. This manual is an essential tool for owners and technicians maintaining the performance and longevity of these compact loaders.

Key Highlights

• Rated operating capacity: ~1,500 lbs, ~40 hp engine output
• Hydrostatic drive system with smooth variable-speed control
• Hydraulic pressure: ~1,550 psi with reliable lifting performance
• Loader hinge pin height: ~95 inches; dump angles optimized for loading
• Travel speed: up to ~6 mph for productive operation
• CL-40 includes oil pressure gauge for enhanced monitoring
• 12-volt electrical system for dependable starting and controls

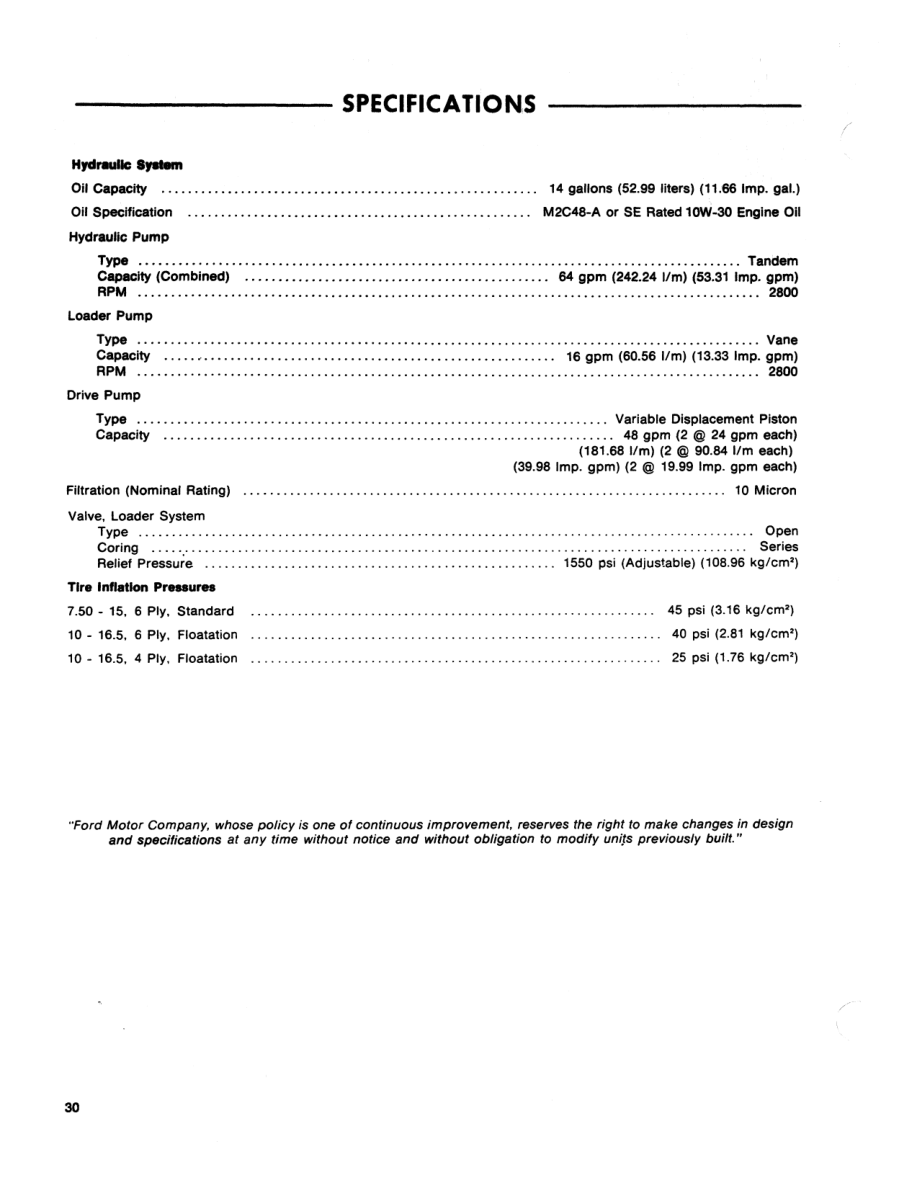

• Workshop manual sections: operation, troubleshooting, hydraulics, pumps, cylinders, valves, lubrication, specifications

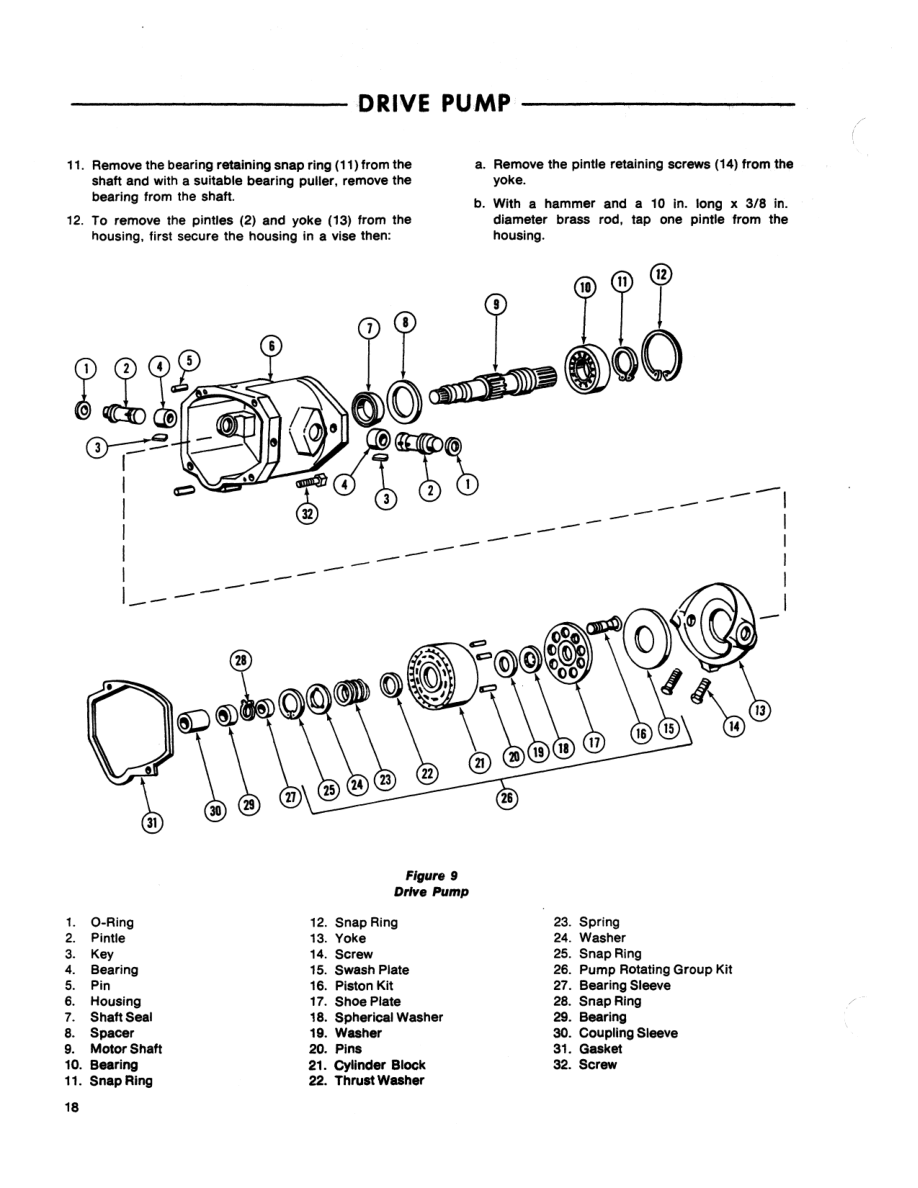

• Includes exploded diagrams, troubleshooting charts, and lubrication schedules
• Essential for maintaining peak performance and extending loader service life
